What Are the Four Stages of Charging a Battery?

What is 4 stage charging?

The four stages of charging a battery are bulk chargingabsorption chargingfloat charging, and sometimes equalization charging. These stages ensure that batteries are charged efficiently and safely, maximizing their lifespan and performance across various applications.

What Are the Four Stages of Battery Charging?

The four stages of battery charging are:

electric golf carts

Wholesale lithium golf cart batteries with 10-year life? Check here.

  1. Bulk Charging: The initial stage where maximum current is applied to quickly charge the battery.
  2. Absorption Charging: A controlled stage where voltage is held constant while current decreases as the battery approaches full charge.
  3. Float Charging: A maintenance stage where a lower voltage is applied to keep the battery fully charged without overcharging.
  4. Equalization Charging (if applicable): A periodic stage used to balance charge levels among individual cells in flooded lead-acid batteries.

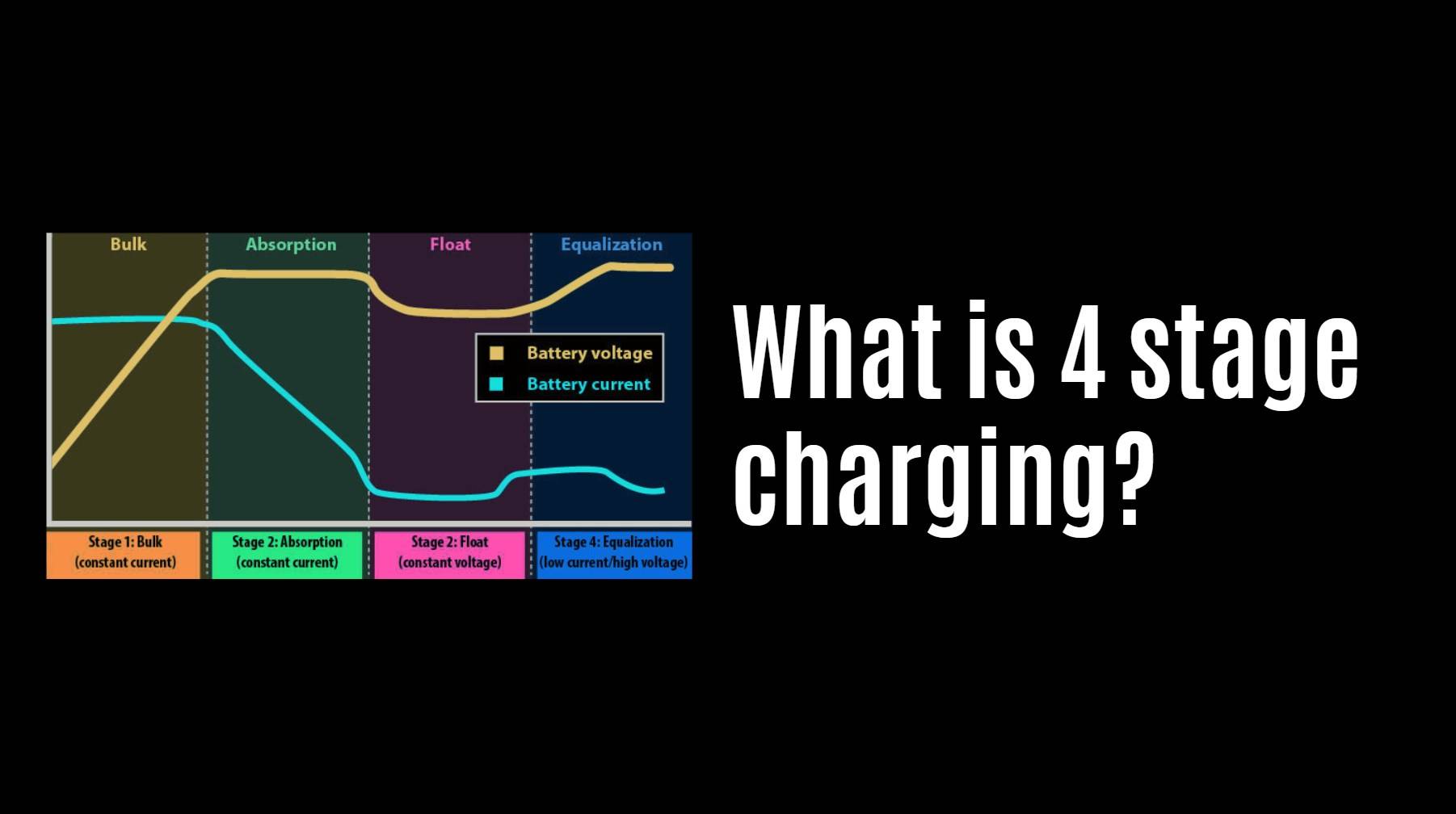

Chart: Overview of Battery Charging Stages

Stage Description Purpose
Bulk Charging High current applied until ~80% charge Rapidly restores battery capacity
Absorption Charging Constant voltage with decreasing current Safely completes charging
Float Charging Lower voltage maintained Keeps battery topped off
Equalization Charging Balances charge among cells Ensures uniform capacity

How Does Each Stage of Charging Work?

Each stage plays a crucial role in ensuring effective battery charging:

  1. Bulk Charging: The charger delivers a high current to quickly raise the battery’s state of charge, typically up to about 80%. This stage is efficient as it allows rapid replenishment of energy.
  2. Absorption Charging: Once the battery reaches approximately 80% charge, the charger maintains a constant voltage while allowing the current to taper off. This prevents overheating and gassing, which can damage the battery.
  3. Float Charging: After reaching full charge, float charging maintains a lower voltage to keep the battery at maximum capacity without overcharging it. This helps prolong battery life by preventing stress on the cells.
  4. Equalization Charging: This optional stage is used primarily for flooded lead-acid batteries and involves applying a higher voltage for a short period to equalize charge levels among individual cells.
See also  How can I find out my battery’s group size?

Why Is Each Stage Important for Battery Health?

Following these stages is essential for several reasons:

  1. Battery Longevity: Properly managing each stage helps prevent damage from overcharging or excessive heat.
  2. Efficiency: It ensures that batteries are charged quickly and effectively without wasting energy.
  3. Safety: Adhering to recommended practices minimizes risks associated with battery charging, such as leaks or explosions.

What Happens During the Bulk Charging Stage?

During bulk charging, a high current is applied to restore most of the battery’s charge quickly. This stage typically lasts until about 80% capacity is reached, allowing for efficient recharging without excessive time delays.For example, if using a 100Ah lead-acid battery, a charger might supply around 10A to 30A during this phase, depending on its design and specifications.

Forklift Lithium Battery


Want OEM lithium forklift batteries at wholesale prices? Check here.

How Does the Absorption Charging Stage Function?

In absorption mode, once the battery reaches approximately 80% charge, the charger switches to maintaining a constant voltage (usually around 14.4 – 14.7 volts). The current gradually decreases as it approaches full charge, which can take longer than bulk charging because it requires careful management to avoid overheating.This process ensures that the last portion of energy is added safely without causing damage due to excessive gassing or heat.

What Is Float Charging and Its Importance?

Float charging occurs after full charge has been reached, where a lower voltage (about 13.2 – 13.8 volts) is maintained to keep the battery topped off without overcharging it. This stage is crucial for long-term maintenance and ensures that batteries remain ready for use without deterioration over time.By keeping the battery at this voltage level, float charging prevents self-discharge while maintaining overall health.

See also  How the ECO-WORTHY 48V 100Ah Lithium Battery Enhances Golf Cart Performance

How Do Temperature and Voltage Affect Charging Stages?

Temperature significantly impacts battery performance during charging:

  • Higher temperatures can increase voltage readings temporarily, while lower temperatures can decrease them.
  • For optimal performance, keep batteries within their recommended temperature ranges, typically between 20°C to 25°C (68°F to 77°F).

Voltage settings during each stage must also be adjusted based on temperature conditions to ensure safe and effective charging.

What Are Common Applications for Each Charging Stage?

Different applications benefit from these charging stages:

  • Bulk Charge: Used in automotive applications where rapid recharging is essential.
  • Absorption Charge: Commonly found in solar power systems where batteries need careful management.
  • Float Charge: Utilized in backup power systems to maintain batteries at full capacity without overcharging.
  • Equalization Charge: Applied in flooded lead-acid batteries used in renewable energy systems to ensure all cells maintain equal charge levels.

Tips for Battery Wholesale Buyers

When selecting batteries for OEM applications, consider:

  1. Performance Requirements: Assess energy density, cycle life, and discharge rates needed for your application.
  2. Cost Efficiency: Evaluate both initial costs and long-term savings associated with battery longevity and maintenance.
  3. Supplier Reliability: Partner with established manufacturers like Redway Power, which offers high-quality lithium battery solutions backed by over 13 years of experience.

By understanding these factors, buyers can make informed decisions that enhance their product offerings while optimizing performance.

Redway Power Expert Views

“Understanding the four stages of charging is critical for maximizing battery performance,” states an expert from Redway Power. “Properly managing each phase not only extends battery life but also enhances safety during operation.”In conclusion, knowing about the four stages of charging—bulk, absorption, float, and equalization—helps users maintain their batteries effectively and ensures optimal performance across various applications.

See also  Can You Convert Watt-Hours Back to Amp-Hours?

FAQ Section

  • What are the four stages of charging?
    The four stages are bulk charging, absorption charging, float charging, and equalization charging.
  • How long does bulk charging typically take?
    Bulk charging usually takes about 1 to 4 hours, depending on how discharged the battery is.
  • What happens during absorption charging?
    In absorption mode, constant voltage is maintained while current decreases as it approaches full charge.
  • What is float charging?
    Float charging maintains a lower voltage to keep a fully charged battery topped off without overcharging it.
  • Why is it important to follow these stages?
    Following these stages helps maintain battery health, efficiency, and safety during charging processes.
