Specifications | |
---|---|
Cell Type | lithium-ion |
Rated Voltage | 48V |
Rated Capacity | 20Ah |
Rated Energy | 960Wh |
Charge Peak Voltage | 54.6V |
Discharge Cut-off Voltage | 36V |
Max. Continues Discharge Current | 20A |
Peak Discharge Current | 60A |

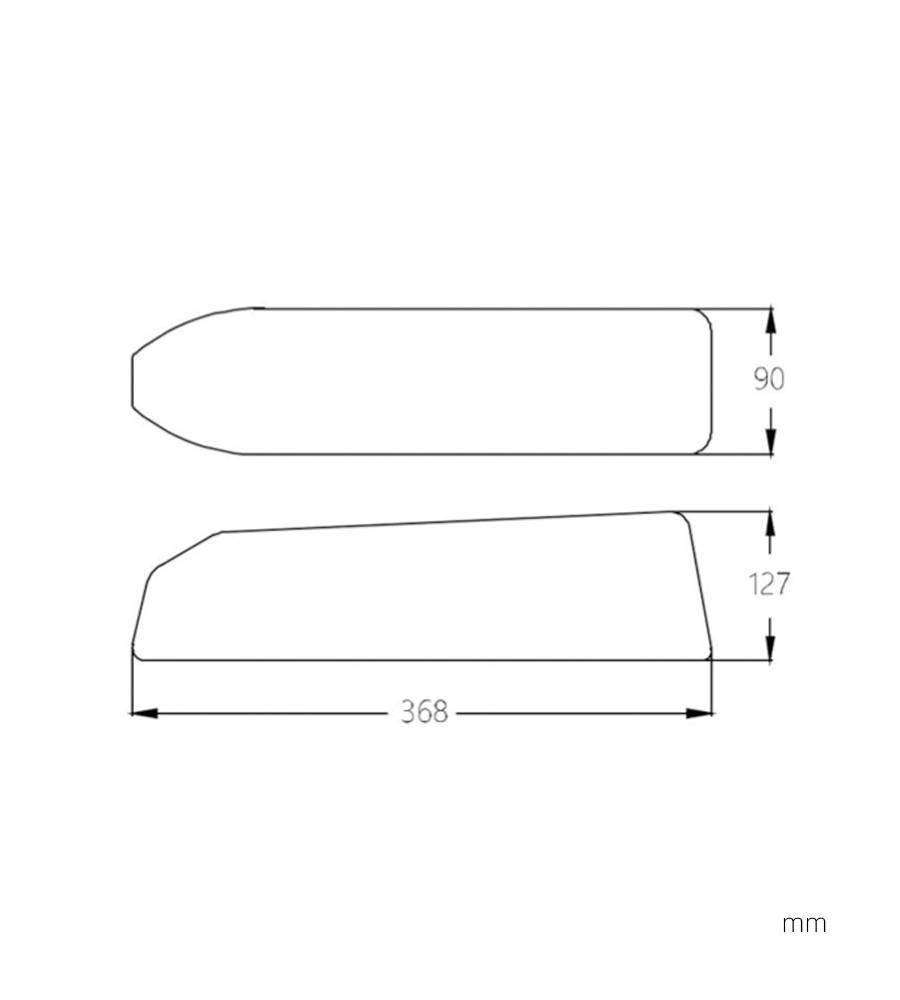

Dimensions [L x W x H] |
368 * 127 * 90 mm |
Weight | 4 kg |
Self-Heating | Yes |
Charger | Yes |
Cycle Life | >1000 cycles (DOD 80%) |
Lower Discharge Port | 4 Pin |
Connector Option | XT connector, Anderson Connector |
BMS Protection | Over charge voltage protection, Over discharge voltage protection, Over discharge current protection, Over Charge current protection, High temperature protection, Short Circuit Protection. |
