PW51200-H | Specifications |
---|---|
Cell Type | LiFePO4 |
Nominal Voltage | 51.2V |
Battery Capacity | 200Ah |
Nominal Energy | 10.24kWh |
Dimension [L x W x H] | 860 x 520 x 165 mm |
Weight | 113kg |
Working Voltage | 44.8V~57.6V |
Charge Voltage | 57.6V |
Discharge Cut-off Voltage | 44.8V |
Rated Charging/Discharge Current | 50A Continuous |
Maximum Charge Current | 100A Continuous |
Maximum Discharge Current | 100A Continuous |
Rated Charging/Discharge Power | 5120W |
Charging Temperature | 0~55°C |
Discharging Temperature | -20~60°C |
LCD Screen | Yes |
Cooling | Natural |
Max. Parallel Connection | 4p to 40.96kWh |
Cycle Life (25°C / 77℉@60% DOD) | >8000 Cycles |
Cycle Life (25°C / 77℉@80% DOD) | >6000 Cycles |
Self-Discharge Rate | <3% per month |
IP Grade | IP20 |
Battery Case | Metal |
Monitoring & Protection | Smart BMS: Overcharge / OverDischarge / Overcurrent / OverTemperature / ShortCircuit |
Communication | RS485 / RS232 / CAN-bus |
Optional Functions | Bluetooth / WiFi / 4G / 5G / Circuit Breaker / Heating / Active Balance / LED Touch Screen / APP |
Accessories | Inverter Power Cable, Parallel Cable, Communication Cable, Grounding Wire |
Compatible Inverters | Victron / GOODWE / Solis / Growatt / SMA / SAJ / Luxpower / SRNE / Deye / Voltronic, etc. |
Color | White |
Design Life | 20 Years |
Warranty | 10 Years |
User Manual | With the Battery Packaging |
Certification & Safety Standard | UN38.3 / IEC62619 / RoHS / EMC / MSDS |

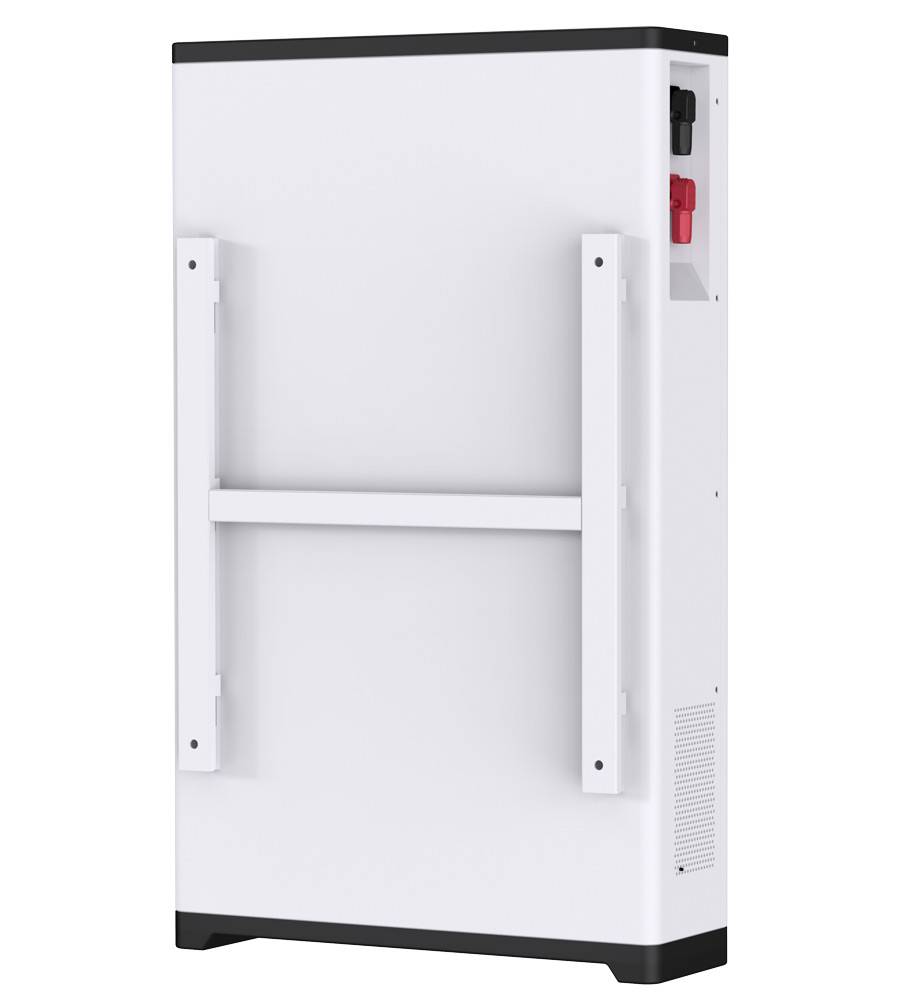

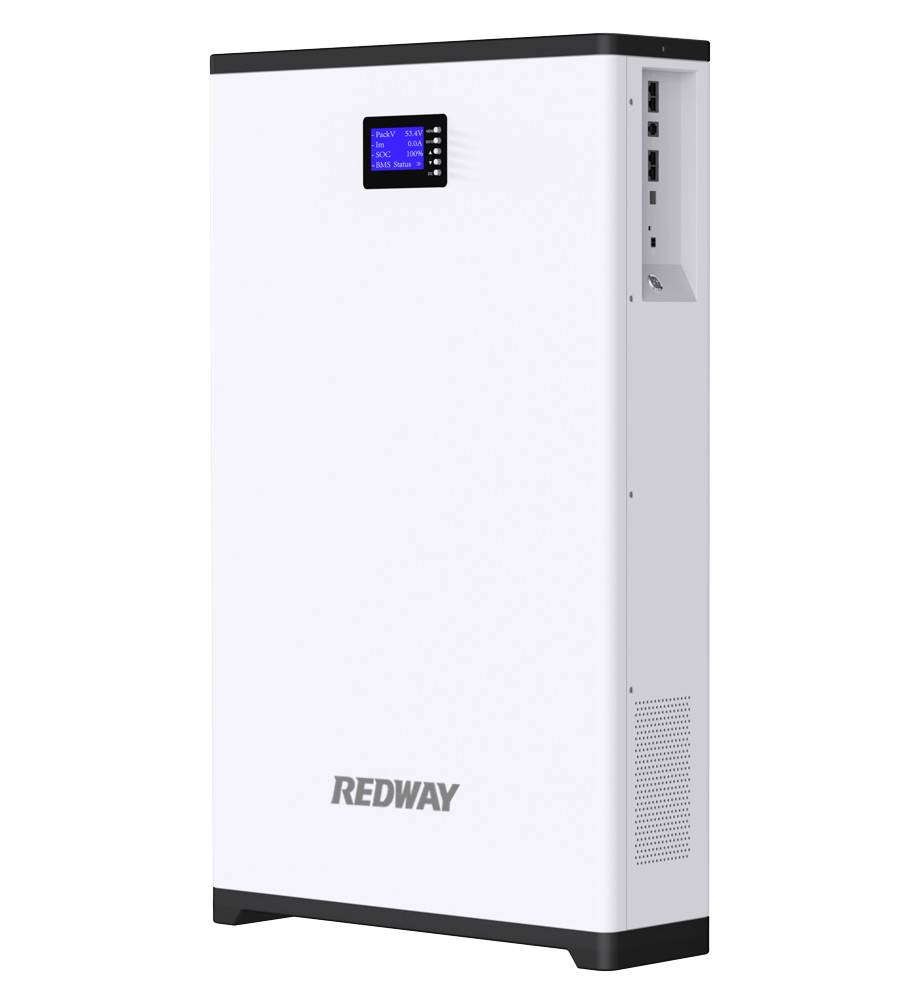

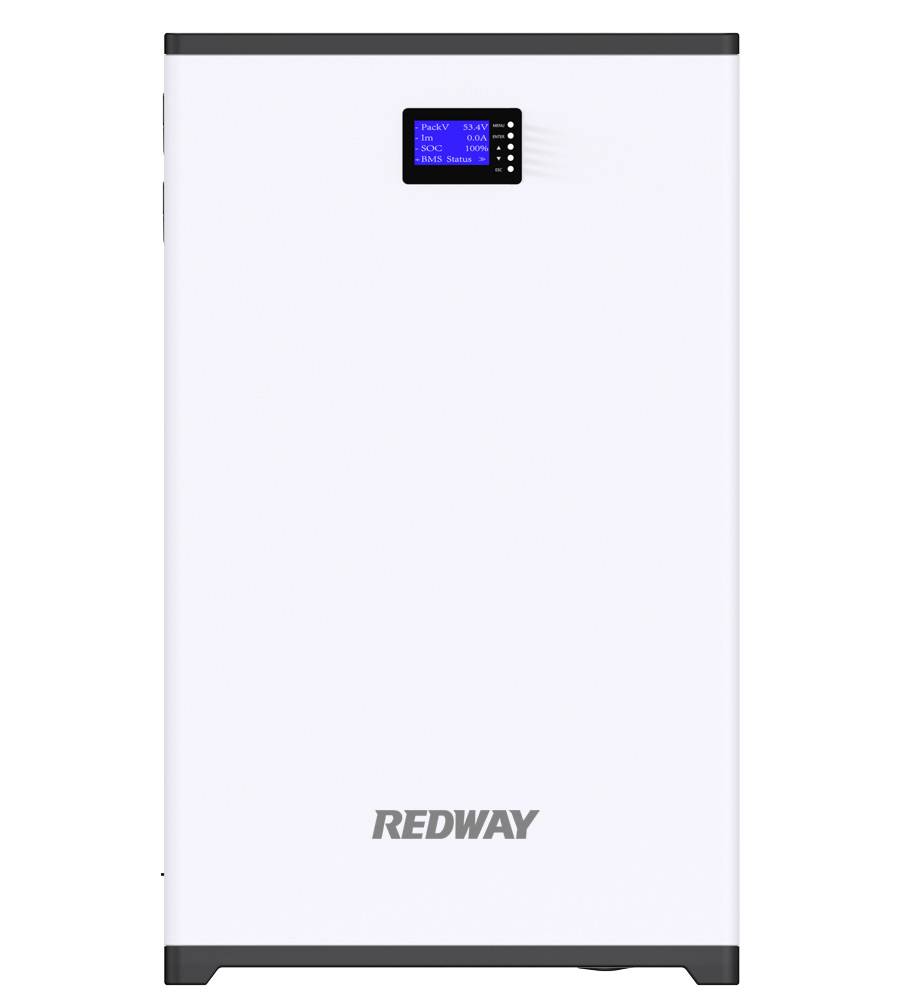

PW51200-H 51.2V 48V 200Ah 10kWh PowerWall Home-ESS Lithium Battery
• Cell: LiFePO4
• MOQ: 5
• Delivery: 25 Days
• Customizable / OEM / ODM: Yes
• Factory: Redway, Dongguan, Guangdong, China
• Delivery Terms: FOB, EXW, CIF
• Payment: T/T, L/C, PayPal
• Sea / Air / Land Shipment: 10FT, 20FT, 40FT, 60FT
